| Does anyone have specific dimensions of some 15th century halberd? I would like to know some average thickness, length and width of the blade.
|
|
  |
 |
Merv Cannon
Usergroups:
Location: Brisbane, Australia
Joined: 15 Jul 2005
Reading list: 13 books
Posts: 301
|
| Posted: Thu 02 Mar, 2006 2:15 am Post subject: |
|
|
Vaclav.....I'm not too sure that anyone has an actual list that has averaged them all out. I dont think there was very much standardisation ...........esp. as they were from various different countries.
There is a book albeit quite expensive...... mabye your local Library can get it in for you.....
[url]http://www.myArmoury.com/books/item.php?ASIN=9004144099 [/url]
Its called "Hafted Weapons in Medieval and Renaissance Europe
The Evolution of European Staff Weapons between 1200 and 1650 "
by John Waldman
|
|
 |
|
Russ Ellis
Usergroups:
Joined: 20 Aug 2003
Reading list: 40 books
Posts: 2431
|
| Posted: Thu 02 Mar, 2006 5:36 am Post subject: |
|
|
Sorry I've got the book and have been meaning to look it up (he does give some dimensions) but keep forgetting... maybe tonight...
_________________
TRITONWORKS Custom Scabbards |
|
|
|
|
Eric Nower
Usergroups: None
Location: Upstate NY
Joined: 22 Dec 2004
No reading list
Posts: 185
|
| Posted: Thu 02 Mar, 2006 7:20 am Post subject: |
|
|
Are you talking about the 1400's or 1500's......I always get confussed
_________________
May God have mercy on my enemies, for I shall have none. |
|
|
|
|
Chad Arnow
myArmoury Team
Usergroups:
Location: Cincinnati, OH
Joined: 18 Aug 2003
Reading list: 215 books
Posts: 7806
|
| Posted: Thu 02 Mar, 2006 7:27 am Post subject: |
|
|
| Eric Nower wrote: | | Are you talking about the 1400's or 1500's......I always get confussed |
15th century = 1400s. It's always one off in numbers since AD 1-99 (the 000's) is the first century. AD 100-199 is the second, etc.
_________________
ChadA
http://chadarnow.com/ |
|
  |
|
Vaclav Hajek
Usergroups: None
Joined: 27 Feb 2006
No reading list
Posts: 23
|
| Posted: Thu 02 Mar, 2006 10:04 am Post subject: |
|
|
| Merv Cannon wrote: | | Vaclav.....I'm not too sure that anyone has an actual list that has averaged them all out. I dont think there was very much standardisation ...........esp. as they were from various different countries. |
Sorry, I probably didn't write it clearly. I would like to know some common thickness, length and width of any 15th century (1400s) halberd - for example this one: http://www.myArmoury.com/albums/displayimage....amp;pos=77
I found just the lengths of the blade in books and no thickness, so I wanted to have the idea what it would be and whether the thickness was affected by the dimensions of the blade.
|
|
|
|
|
Eric Nower
Usergroups: None
Location: Upstate NY
Joined: 22 Dec 2004
No reading list
Posts: 185
|
| Posted: Thu 02 Mar, 2006 6:54 pm Post subject: |
|
|
Well, the halberd I have is based on historical examples and measures roughly like this:
I and 3/12 inches at the socket and head
The spear is 3/4 of an inchand tapers to a point
The axe part is about 1/4 inch
Hopes that helps
_________________
May God have mercy on my enemies, for I shall have none. |
|
|
|
|
Vaclav Hajek
Usergroups: None
Joined: 27 Feb 2006
No reading list
Posts: 23
|
| Posted: Sun 05 Mar, 2006 2:00 am Post subject: |
|
|

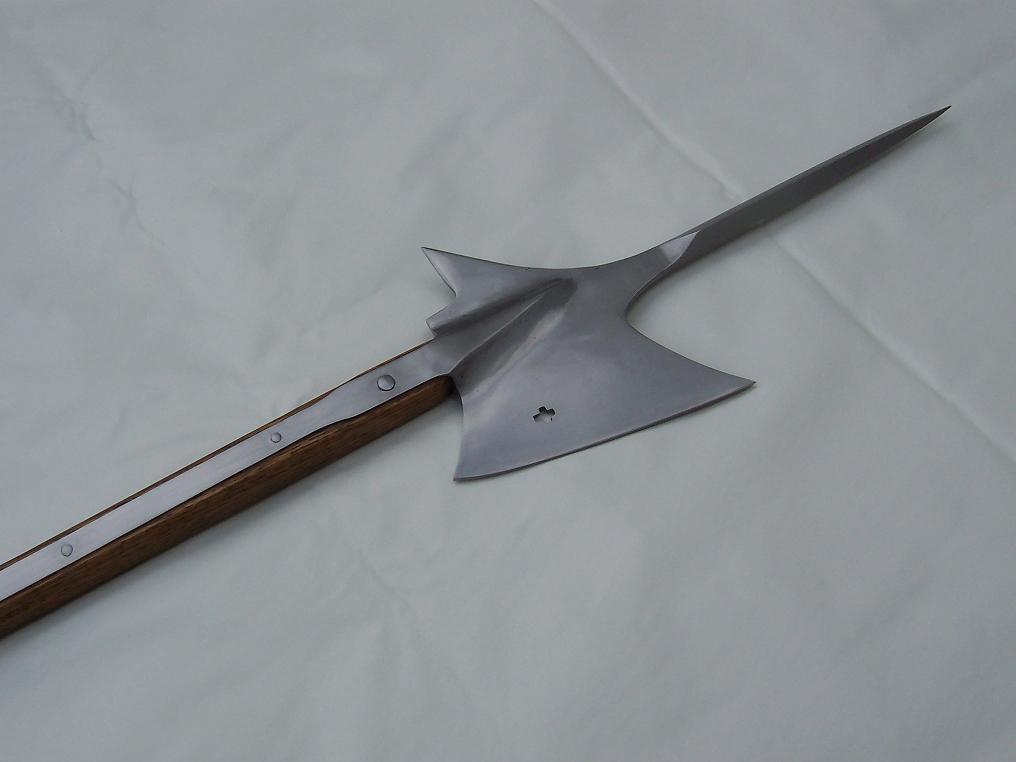

I'm about to make this halberd, but I'm not quite certain with these dimensions. Please, can anybody tell me what would be the diameter of shaft, blade thickness, width and the length of this halberd?
 Attachment: 4.59 KB, Viewed: 344 times
|
|
|
|
|
Russ Ellis
Usergroups:
Joined: 20 Aug 2003
Reading list: 40 books
Posts: 2431
|
| Posted: Sun 05 Mar, 2006 9:01 pm Post subject: |
|
|
Okay, dug out the book tonight. The Halberd that you have pictured is virtually identical to Fig 35 in Waldman's book. He places that particular Halberd at the end of the 14th century. The original currently resides in the Metropolitan Museum of Art.
The pole would have been around 4cm in diameter, and probably round in cross section for this particular example. Examples in the book of similar models about 37cm in length, thie spike at around 14cm and weighs in at about 578 grams. There are no dimensions given for the "thickness" of the piece that I can find.
I hope that helps.
_________________
TRITONWORKS Custom Scabbards |
|
|
|
|
Vaclav Hajek
Usergroups: None
Joined: 27 Feb 2006
No reading list
Posts: 23
|
| Posted: Mon 06 Mar, 2006 4:03 am Post subject: |
|
|
| Thank you, Russ. It really helped me. I guess the thickness should be about 3 or 4 mm. What do you think?
|
|
|
|
|
Russ Ellis
Usergroups:
Joined: 20 Aug 2003
Reading list: 40 books
Posts: 2431
|
| Posted: Mon 06 Mar, 2006 6:06 am Post subject: |
|
|
| Vaclav Hajek wrote: | | Thank you, Russ. It really helped me. I guess the thickness should be about 3 or 4 mm. What do you think? |
I think that should be pretty close. I'm embarassed to admit that at the one time that I was exposed to original polearms I had not yet come to appreciate them and so did not think to take any measurements. I expect that someone who has measured them will show up any second now, but worst case you could make one of that thickness and if it is too heavy grind it down evenly to get the correct weight. If it is too light I guess you would have to try again...
_________________
TRITONWORKS Custom Scabbards |
|
|
|
|
Fabrice Cognot
Usergroups:
Location: Dijon
Joined: 29 Sep 2004
No reading list
Posts: 212
|
| Posted: Mon 06 Mar, 2006 7:55 am Post subject: |
|
|
I studied a mid-to late XVth century halberd for my MA dissertation about 5 years ago. Made some drawings and measurements. You can see a drawing there : http://perso.wanadoo.fr/fcognot/halb/halb.htm
Scale is in cms.
Blade thickness is consistent with the rear fluke's. There's no 'taper' per se from the socket to the cutting edge ; rather, starting 2cms from the edge, you get an ogival section - but the blade's not sharp at all. Socket hole is square-ish.
Overall weight is 1250 g, though one of the bands is missing, and there's a bit of corrosion (though quite superficial).
Lenght is about 618 mm. I can post better pics of it if you want (and if I can find them).
Cheers
Fab
_________________
Dijon 2009 : International Historical European Martial arts Gathering. you missed something..
HEMAC member
De Taille et d'Estoc director |
|
|
|
|
Vaclav Hajek
Usergroups: None
Joined: 27 Feb 2006
No reading list
Posts: 23
|
| Posted: Tue 07 Mar, 2006 12:44 am Post subject: |
|
|
It look interesting indeed. It would be wonderful, if you can post some more pictures.
|
|
|
|
|
Fabrice Cognot
Usergroups:
Location: Dijon
Joined: 29 Sep 2004
No reading list
Posts: 212
|
| Posted: Tue 07 Mar, 2006 5:03 am Post subject: |
|
|
hm I fear these pics disappeared from my HD.
The halberd is in a private collection, though I'll have the owner on the phone tonight. I'll ask him to take more pics - especially views of the socket - and email them to me. Although I'm not sure he has a digital camera.
Well, at least I now I have other pics on my parent's computer. I'll try to find them and post them next week maybe.
Sorry again
Fab
_________________
Dijon 2009 : International Historical European Martial arts Gathering. you missed something..
HEMAC member
De Taille et d'Estoc director |
|
|
|
|
Russ Ellis
Usergroups:
Joined: 20 Aug 2003
Reading list: 40 books
Posts: 2431
|
| Posted: Tue 07 Mar, 2006 6:02 am Post subject: |
|
|
Just han another thought... you mention you want to build a 15th century halberd but the pattern that you are looking at my be a little too early for 15th century?
_________________
TRITONWORKS Custom Scabbards |
|
|
|
|
Eric Nower
Usergroups: None
Location: Upstate NY
Joined: 22 Dec 2004
No reading list
Posts: 185
|
| Posted: Tue 07 Mar, 2006 7:07 am Post subject: |
|
|
| Russ Ellis wrote: | | Just han another thought... you mention you want to build a 15th century halberd but the pattern that you are looking at my be a little too early for 15th century? |
No, I don't think so. Mines based on historical examples from the mid -late 15th. I think I said that right
Attachment: 40.53 KB, Downloaded: 61 times
[ Download ]
_________________
May God have mercy on my enemies, for I shall have none. |
|
|
|
|
Russ Ellis
Usergroups:
Joined: 20 Aug 2003
Reading list: 40 books
Posts: 2431
|
| Posted: Tue 07 Mar, 2006 7:59 am Post subject: |
|
|
| Eric Nower wrote: |
No, I don't think so. Mines based on historical examples from the mid -late 15th. I think I said that right |
I'm sorry I should have been more specific as to who I was talking to. I agree that yours is a 15th century pattern to the best of my knowledge. However the one that Vaclav is referencing appears to be an earlier pattern.
_________________
TRITONWORKS Custom Scabbards |
|
|
|
|
Daniel Staberg
Usergroups:
Location: Gothenburg/Sweden
Joined: 30 Apr 2005
Reading list: 1 books
Posts: 385
|
| Posted: Tue 07 Mar, 2006 9:54 am Post subject: |
|
|
Halberds similar to the pattern Vaclav posted cab be found in Diebold Schilling's Lucern Chronicle as well as in the other illustrated Swiss chronicles which depict scenes from the Burgundian and Swabian wars. It's a simple but effective design and there wouldn't be a whole lot of reasons to abandon it.
/Daniel
|
|
|
|
|
Vaclav Hajek
Usergroups: None
Joined: 27 Feb 2006
No reading list
Posts: 23
|
| Posted: Tue 07 Mar, 2006 10:22 am Post subject: |
|
|
| Russ Ellis wrote: | | Just han another thought... you mention you want to build a 15th century halberd but the pattern that you are looking at my be a little too early for 15th century? |
Actually you are right. This halberd is late 14th century design (c. 1390), but I guess it was still in use during the 15th century. Besides the Lucern Chronicle I saw it at few other 15th century drawings. If I find them, I may post it here. The reason I chose this halberd is that it looks easier to make, as it would be my first attempt.
|
|
|
|
|
