PostPosted: Mon 08 Sep, 2003 1:24 pm    Post subject: Celtic swords         Reply with quote

On being asked at the makers/manufacturers forum, this is a thread dedicated to some aspects of the celtic sword.
I have documented LaTène swords these last few years in the quest for more detailed data. Little by little my respect for those smiths who made these blades have grown. It is obvious they were great creators and keepers of highly developed forging traditions. In roman times that region was called Noricum, famous for swords and high quality steel. It is interesting to note that the centre of the LaTène area also coincides with what later came to be Passau, the famous blade making centre of the middle ages. The mark of Passau blades was the running wolf, a mark that was pirated by the makers in Solingen in the 13th century. One can contemplate if Ulfberth (Ulf- meaning wolf) might have been working in the Passau region and not the solingen are as is often surmised. Please note: that is only speculation on my part: a favourite fantasy.

In most literature on the subject of celtic swords, you see some strange ideas continued. It seems the celtic sword is mostly described as having no point. Most blades I have seen do have an adequate point similar to those on mlater medieval blades. Those with blunt ends are in minority.
Another aspect that is striking is the skill with how the blades are forged and ground. Roman historians describing the short-coming of celtic swords when encountering roman legionaires must be seen in context: Celtic swords were probably not meant to be used on armoured opponents. The blades show a high degree of specialization: slim dimensions, fine and thin edges and points that can be used in slashing cuts and thrusting attacks on opponents that have none or very little in the way of armour. Quick, precise swords meant to be used by expert swordsment in single combat betewwn equals (or to be used in terrorizing unarmored civilians, of course). This is very different from trying to hack into a line of heavily armed infantry with sturdy helmets and metal reinforced shileds. A highly specialized tool is bound to fail when put to use in a way not intended with the design.
What would have happened if the highland scots were armed with small-swords instead of basket hilted broad swords? Would their charge have been as famous?
It is obvious they used a variety of iron alloys and steel to make most of the available material, yet it seems when analyzing surviving blades, that heat treating the steel was not very common. This is very strange, and I cannot help wondering about what methods and samples have been used to arrive at these conclusions.
If I may again speculate, it may be that corrosion and ritual "killing" of swords by annealing could be the cause for the results showing only marginal or no heat treat. If the steel is low in carbon content and has a fine structure, we will only get a thin layer of hardened steel in the thinnest portions of the blade. This is also the parts that are most subject to corrosion. If the sections chosen for analyze is taken from a part of the blade closer to the hilt (where there is more healthy material left from corrosion) it would only be natural to find a lower amount of heat treat here. The point area would have had the higest hardness and as this is also the thinnest part of the blade, any corrosion here can have a big inpact on the results of metalurgical analysis.
Testing of bronze age swords sacrificed in english lakes and rivers have shown that many were annealed before being thrown into the water. Annealed, but not bent! If bronze age smiths/swordowners knew about the damaging effects of applying heat to a fine blade, then surely it would have been known during the celtic iron age, one would think? Many steel blades show a fine pearlitic structure (unhardened = soft) which is exaclty what would have been the result if a blade was placed on hot glowing embers (a funerary pyre?) untill dull red and left to cool. This process would erase all previous traces of heat treat.
We cannot know if any of these my ideas are true. I have not made research of my own to support thisin a scientific way. Still, I cannot help but wonder if we won´t see new facts emerging in the future that will shed new light on the metallurgical refinement of LaTène period swords...
Their structure and fine dimensions make it hard to believe no heat treating was used to make the thin edges harder and the slim spines more springy.
Apart from the blades, the scabbards are also very skillfully made and show a great ingenuity in design, decoration and construction.

what material I have collected is too small to show something other than a selection of various possibilities. I gather information to base reconstructions on and to use as inspiration in designing swords. It is very different from the work done by an historian or archaeologist, who must look at the whole range of surviving material to draw conclusions. I can pick and choose those that I find interesting and inspiring. With that in mind the pictures might still be good illustrations of the variations of the LaTène sword.
It would be great if others would like to comment and/or add material of their own to illustrate this topic.

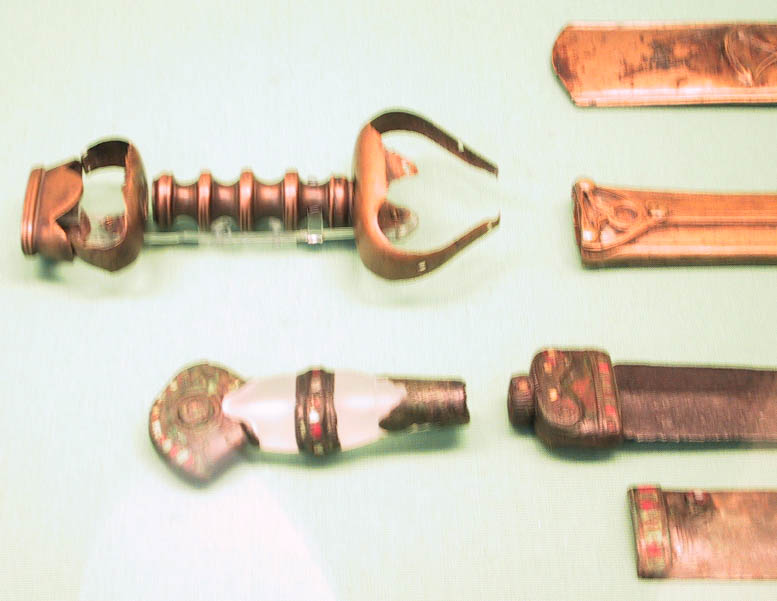

A very poor photo of a famous sword in the British museum. It is arranged incorrectly, as the pommel and guard have changed places and are turned the wrong way. I like these hollow bronze grips, though. Perhaps you can get an idea of the shape despite the poor quality of the photo :



 Attachment: 75.14 KB

View user's profile Send private message Visit poster's website
Peter Johnsson
Industry Professional



Location: Storvreta, Sweden
Joined: 27 Aug 2003
Reading list: 1 book

Spotlight topics: 3
Posts: 1,757

PostPosted: Mon 08 Sep, 2003 1:30 pm    Post subject: Some more photos         Reply with quote

To show evidence of early use of pattern welding and the fine dimensions on these swords, a blade from the Museum of Prehistory in Münich:
View user's profile Send private message Visit poster's website
Peter Johnsson
Industry Professional



Location: Storvreta, Sweden
Joined: 27 Aug 2003
Reading list: 1 book

Spotlight topics: 3
Posts: 1,757

PostPosted: Mon 08 Sep, 2003 1:43 pm    Post subject: Re: Some more photos         Reply with quote

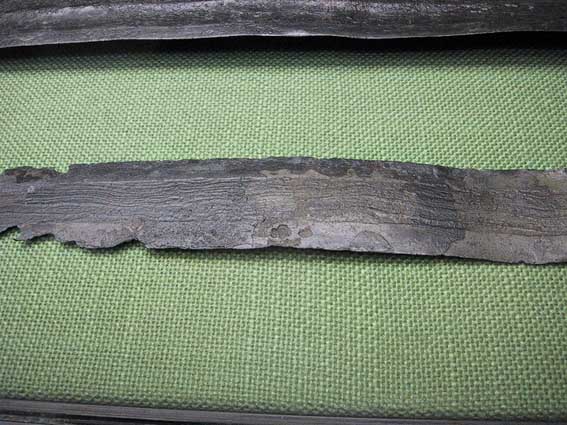

To show evidence of early use of pattern welding and the fine dimensions on these swords, a blade from the Museum of Prehistory in München, new attempt:


 Attachment: 81.81 KB

View user's profile Send private message Visit poster's website
Peter Johnsson
Industry Professional



Location: Storvreta, Sweden
Joined: 27 Aug 2003
Reading list: 1 book

Spotlight topics: 3
Posts: 1,757

PostPosted: Mon 08 Sep, 2003 1:49 pm    Post subject:         Reply with quote

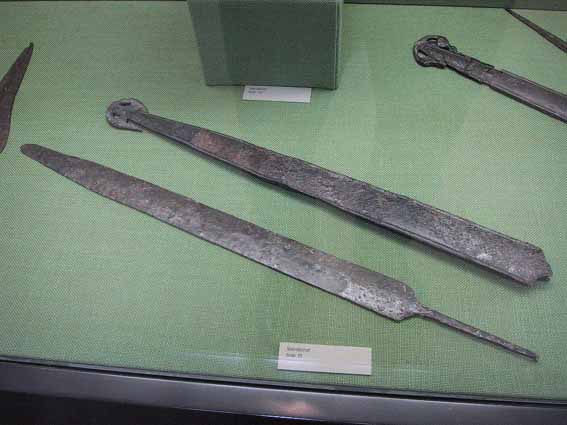

A nice short sword with a typical tapered point. A nice feature combining width in cuting area with a light and quick point. The shape allows for slashing attacks with the point as well.


 Attachment: 51.28 KB

View user's profile Send private message Visit poster's website
Peter Johnsson
Industry Professional



Location: Storvreta, Sweden
Joined: 27 Aug 2003
Reading list: 1 book

Spotlight topics: 3
Posts: 1,757

PostPosted: Mon 08 Sep, 2003 1:54 pm    Post subject:         Reply with quote

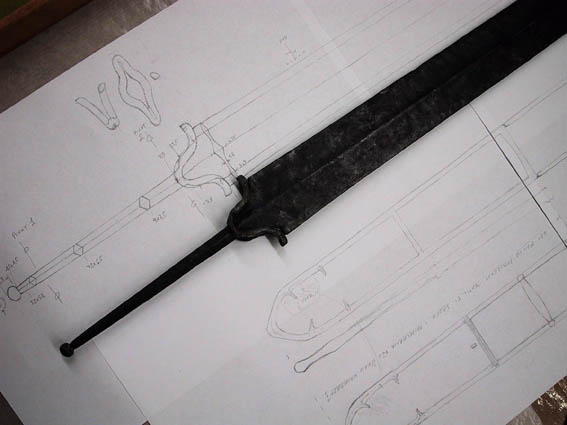

This is a sword from the Klingenmuseum in Solingen. It is slim and slight but have the same shape and proportions as bigger cousins of the same type. The cross section is crisp and shows some marks from forging.


 Attachment: 53.22 KB

View user's profile Send private message Visit poster's website
David White




Location: Stanardsville VA
Joined: 23 Aug 2003

Spotlight topics: 1
Posts: 47

PostPosted: Mon 08 Sep, 2003 1:57 pm    Post subject:         Reply with quote

Peter-

Thank you for your observations, its most informative. I think you hit the nail on the head with your insight and comments.

From what you've seen in hilt componets, how common was the mix of both organic and bronze componets being used
on the same hilt (bronze pommel/guard with an organic grip)?

Have you seen examples of solid bronze pommels and guards?

thanks again,

dave


Last edited by David White on Mon 08 Sep, 2003 2:08 pm; edited 1 time in total
View user's profile Send private message Send e-mail
Peter Johnsson
Industry Professional



Location: Storvreta, Sweden
Joined: 27 Aug 2003
Reading list: 1 book

Spotlight topics: 3
Posts: 1,757

PostPosted: Mon 08 Sep, 2003 1:58 pm    Post subject:         Reply with quote

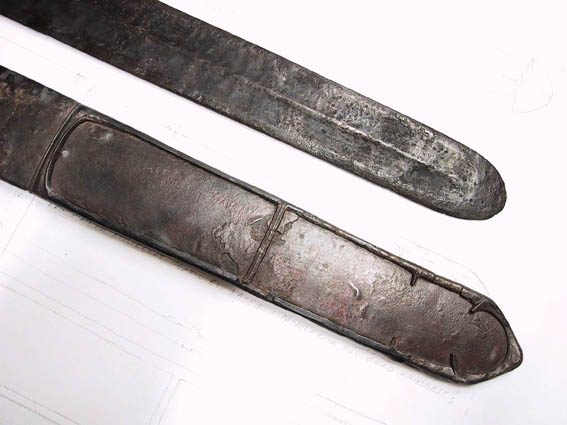

The same sword showing the point and the chape of the scabbard. The iron work on the scabbard was perhaps even more skillfully made than the sword, in any casy details are more exact and finish higher. I wonder if this was a small "dress sword" in its time of use? (Just wild speculation!)


 Attachment: 62.09 KB

View user's profile Send private message Visit poster's website
Peter Johnsson
Industry Professional



Location: Storvreta, Sweden
Joined: 27 Aug 2003
Reading list: 1 book

Spotlight topics: 3
Posts: 1,757

PostPosted: Mon 08 Sep, 2003 2:10 pm    Post subject:         Reply with quote

David White wrote:
Peter-

Thank you for your observations, its most informative. I think you hit the nail on the head with your insight and comments.
From what you've seen in hilt componets, were there a mix of both organic and bronze componets being used
on the same hilt (bronze pommel/guard with an organic grip)?

thanks again,

dave


Dave,
yes it is common to mix materials. Wood (or horn?) could be used for the upper and lower guard and in some cases, as seen above, the grip can be made of bronze (and then typically hollow).
The combination of (solid)bronze(or iron) upper and lower guards with organic grip is not very common, I think. I don´t know if I have ever seen an example of this. (If not the sword on the first pic below the one with hollow broinze grip counts...)The common practice is to use organic material for the hilt, with metal reinforcements.
Coral inlays is popular on fancy swords.
The antropomorphic hilted swords (daggers, really) have bronze, or sometimes iron hilts.
You will not find a solid metal pommel to balance the blade as on swords from later periods. Celtic blades have a nice inherent balance of their own and are designed to have light hilts.
View user's profile Send private message Visit poster's website
Peter Johnsson
Industry Professional



Location: Storvreta, Sweden
Joined: 27 Aug 2003
Reading list: 1 book

Spotlight topics: 3
Posts: 1,757

PostPosted: Mon 08 Sep, 2003 2:25 pm    Post subject:         Reply with quote

David White wrote:
Peter-

Thank you for your observations, its most informative. I think you hit the nail on the head with your insight and comments.

From what you've seen in hilt componets, how common was the mix of both organic and bronze componets being used
on the same hilt (bronze pommel/guard with an organic grip)?

Have you seen examples of solid bronze pommels and guards?

thanks again,

dave


Sorry, I realized I did not really answer your question...
How common it is to mix materials in the hilts? Well, he typical surviving LaTène sword looks rather like the one from Solingen: a small rivet washer, like a button, a bare tang and the little W-shaped mount at the base of the blade. There are some times thin washers that would have been mounted between grip, guard and pommel. To go further we have to make educated guesses. Usually you do not see so much metal in the hilts. Usually the blades survive with only minimal details of the hilts remaining.
I think it is resonable to believe that wood and/or horn parts could have had some decoration as well. Perhaps not swirls as are incised on the scabbards, but well placed ridges and lines to make the shape more interesting. Contrast in shape and colour was a favourite theme in celtic art. A smooth well sculpted form in pommel and guard might also have been left alone to contrast agains the steel of the blade and patterns of the scabbard.
View user's profile Send private message Visit poster's website
Björn Hellqvist
myArmoury Alumni


myArmoury Alumni

Location: Sweden
Joined: 19 Aug 2003

Posts: 723

PostPosted: Mon 08 Sep, 2003 4:44 pm    Post subject:         Reply with quote

While on the subject, here's a bunch of pics from the National Museum in Copenhagen, Denmark.

A wooden scabbard:



Details of the same:







A sword and its scabbard:



Some details:





And a sword with some of its organic grip still left:



There's more at http://62.242.233.116/kulturnet/. It's in Danish, but pick "Genstande", then "Vaben", then "Svaerd". Enjoy!
View user's profile Send private message Visit poster's website
Nathan Bell





Joined: 21 Aug 2003

Posts: 329

PostPosted: Mon 08 Sep, 2003 5:31 pm    Post subject:         Reply with quote

Ah now THIS is the sort of thread I have been missing on the online fora of late!

Excellent post Peter, raising many interesting points. I also feel we have very little variety in Celtic sword reconstructions. In fact, there are not very many options even of the "standard" double-lobed guards variety seen so often in sculptural evidence.

A great note on the issues of points, also. Having recently (finally) gotten a copy of Navarro's catalogue of the actual La Tene swords, it becomes quite clear (and Navarro is quite explicit) that even amongst the La Tene B/La Tene II swords many, many had sharp points, capable of thrusting, and still quite sharp after eons submerged in a lake.

I too would like to see more variety, it would be nice to see a La Tene A out there, with nicely tapering point, or even one with the nicely raised hollow ground midridge which seems to be not too uncommon on La Tene A...

It's also very pleasing to see Peter Johnsson so interested in reproducing nicely authentic Celtic blades. Very pleasing indeed.....
View user's profile Send private message Visit poster's website
Scott Bubar




Location: New England
Joined: 21 Aug 2003

Posts: 120

PostPosted: Mon 08 Sep, 2003 6:20 pm    Post subject:         Reply with quote

Peter, what do you think of the tangs on these swords?

I've only seen them in pictures, and they look awfully fragile, but I don't think I've ever seen a side view of one.
View user's profile Send private message
Shane Allee
Industry Professional



Location: South Bend, IN
Joined: 29 Aug 2003

Posts: 506

PostPosted: Mon 08 Sep, 2003 9:21 pm    Post subject:         Reply with quote

It is great to see a thread like this develope.
I will just post some links to sites for those who would like to look at more pictures.

http://mitglied.lycos.de/tgrb/leger_museum_de...index.html
About picture 30 and 31 are La Tene period, then I think there is another one about 43. Unsure about 32, the threaded pommel cap thing is very similar to ones found on known roman swords.

http://mitglied.lycos.de/tgrb/british_museum/index.html
This is a gallery of photos from the British Museum and 12-22 all have photos of La Tene swords.

http://www.thebritishmuseum.ac.uk/compass/index.html
Also try out the British Museum's compass search. They don't have photos of everything, but a search for "sword" will bring up wonderful results. The Hod Hill sword will come up along with the Kirkburn and Isleham swords. Not to mention some of the best photos of the sutton Hoo sword, the Crundale pommel, and the Fulham sword. Very great resource offered by the British Museum.

This thread really has me looking forward to getting my custom La Tene which could be here any time now.

Shane
View user's profile Send private message Send e-mail Visit poster's website
Patrick Kelly




Location: Wichita, Kansas
Joined: 17 Aug 2003
Reading list: 42 books

Spotlight topics: 2
Posts: 5,739

PostPosted: Mon 08 Sep, 2003 9:37 pm    Post subject:         Reply with quote

Outstanding thread gentlemen!

This is the kind of stuff we like to see. Keep it coming Big Grin
View user's profile Send private message AIM Address
David White




Location: Stanardsville VA
Joined: 23 Aug 2003

Spotlight topics: 1
Posts: 47

PostPosted: Tue 09 Sep, 2003 1:18 pm    Post subject: Looking at the bronze hilt fittings.....         Reply with quote

I've been looking at the bronze hilt fittings (the sword with the bronze grip), were these fittings held on by small nail/tacks?
I'm guessing that they were iron because I don't see them in the picture.

Also, how durable would these multi-componet hilts have been?

Would they have been mounted flush with the organic pommel/guard or would they have been recessed into the
wood or horn?

dave
View user's profile Send private message Send e-mail
Shane Allee
Industry Professional



Location: South Bend, IN
Joined: 29 Aug 2003

Posts: 506

PostPosted: Tue 09 Sep, 2003 9:03 pm    Post subject:         Reply with quote

Rick Barrett sent his copy of Manfred Sachse's Damascus Steel home with me tonight to show my wife, and I happened upon something pertaining to this subject. In it he has nine cross-sectional drawings (from the work of Joachim Emmerling) showing different blade compositions of La Tene swords. It would be nice if it differentiated between which layers are iron and which are steel, but in most it would not be hard to pick out which one would have been which. I'm not familiar with the work of Joachim Emmerling, but I'll check into it when I can to see what I turn up. Also pictured is the cross-section of six types of seax blades and ten early medieval blades. So that I have these for personal reference I plan to draw them out before I return the book, if someone will keep after me I will try and post my drawings by the end of the week.

By Thursday my wonderful wife will be able to check out books from Notre Dame, and she found out that (while looking for me a copy of The Celtic Sword for our anniversary) that they have a copy. So unless by some fluke someone has it checked out already, I should have it to pour through this weekend.

Also forgot one other place to look for La Tene swords....Hermann Historica
http://www.hermann-historica.com/gb/index.htm

There happened to be a few La Tene period things listed in the auction 45 under the "European Excavated Antiquities." However I recall that auction 44 had quiet a bit of stuff including swords, helms, and spears. Some cool falcatas pictured there as well.

I'll post more once I get the copy of The Celtic Sword in my paws.
Shane
View user's profile Send private message Send e-mail Visit poster's website
Heather Gent




Location: Queensland, Australia
Joined: 10 Sep 2003

Posts: 9

PostPosted: Thu 11 Sep, 2003 3:14 am    Post subject: Wondering         Reply with quote

A probably stupid question from an ignoramous:

I noticed one of the swords above has a mixed grip with leather(?) (if I haven't just mistaken what I'm looking at). How difficult would it have been to keep this from getting slippery in certain weather conditions, given leather's propensity to absorb wet, mould, sweat, etc and crack? What sort of conditioners would have been used to prevent that sort of occurence?
View user's profile Send private message Visit poster's website
Keith Kipferl




Location: Elmira, NY
Joined: 18 Aug 2003

Posts: 41

PostPosted: Thu 11 Sep, 2003 7:36 am    Post subject: Re: Wondering         Reply with quote

Heather Gent wrote:
What sort of conditioners would have been used to prevent that sort of occurence?

Beeswax has traditionally been used to waterproof and protect leather. I don't know if that's what was used on sword grips back then. If it's applied in the right amount it would give a good grip even when wet. Heat would tend to soften it and you'd probably get some wax on your hand but it wouldn't rot and water wouldn't soak in.
View user's profile Send private message
Geoff Wood




Location: UK
Joined: 31 Aug 2003

Posts: 634

PostPosted: Thu 11 Sep, 2003 10:21 am    Post subject: Re: Wondering         Reply with quote

Heather Gent wrote:
What sort of conditioners would have been used to prevent that sort of occurence?


In additiion to the beeswax already mentioned, neatsfoot oil and lanolin have been used as leather conditioners, givng good protection against cracking. I've found, with leather as with wood, that sweat and oil from your own skin can have a fairly good effect (which is reasonable I suppose, given that they probably aren't too damaging to your own untanned leather). I'm told that horse urine is good for softening leather, but I've never tried it.
View user's profile Send private message
David White




Location: Stanardsville VA
Joined: 23 Aug 2003

Spotlight topics: 1
Posts: 47

PostPosted: Thu 11 Sep, 2003 1:24 pm    Post subject: Re: Wondering         Reply with quote

Heather Gent wrote:
A probably stupid question from an ignoramous:

I noticed one of the swords above has a mixed grip with leather(?) (if I haven't just mistaken what I'm looking at). How difficult would it have been to keep this from getting slippery in certain weather conditions, given leather's propensity to absorb wet, mould, sweat, etc and crack? What sort of conditioners would have been used to prevent that sort of occurence?


Hi Heather!

Welcome. Just which sword are you referring to?

dave
View user's profile Send private message Send e-mail


Display posts from previous:
Forum Index > Historical Arms Talk > Celtic swords
Page 1 of 11 Reply to topic
Go to page 1, 2, 3 ... 9, 10, 11  Next All times are GMT - 8 Hours

View previous topic :: View next topic
Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum






All contents © Copyright 2003-2024 myArmoury.com — All rights reserved
Discussion forums powered by phpBB © The phpBB Group
Switch to the Basic Low-bandwidth Version of the forum
